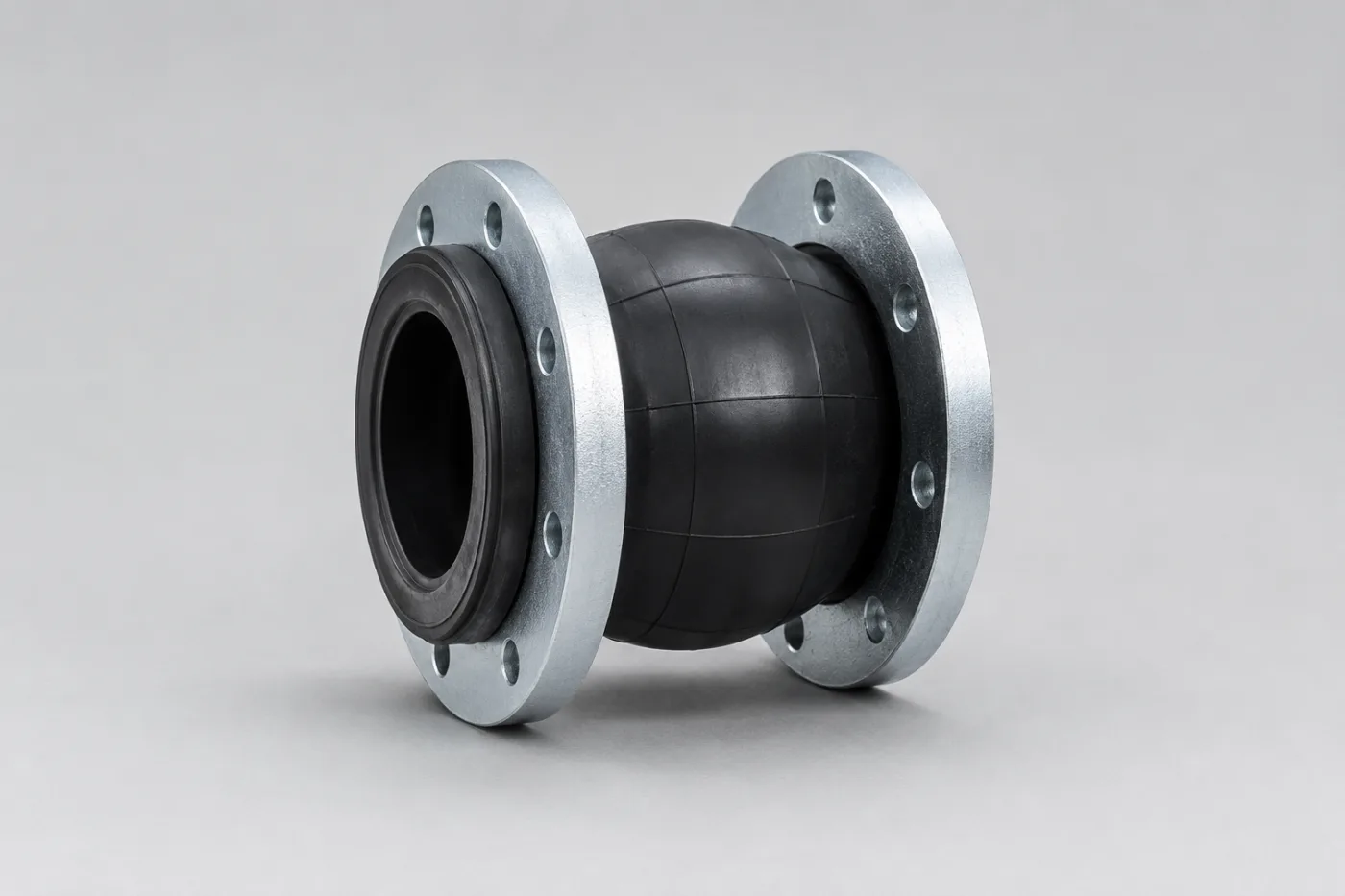

Rubber Expansion Joints for Piping, Pumps and Utility Systems
Flexible elastomeric connectors that accommodate movement while helping isolate vibration and reduce noise.
[ 01 / Overview ]
Rubber expansion joints are flexible elastomeric connectors that accommodate movement while helping isolate vibration and reduce noise in liquid and selected process piping systems. They are widely applied around pumps, chillers, heat exchangers and other equipment where compact flexibility is required.
The rubber compound, reinforcement, arch profile, pressure class, flange arrangement and restraint hardware must be matched to the medium, temperature, pressure, vacuum, movement and installation environment. VT Top Engineering coordinates these requirements for standard and customised replacement applications.
Key Benefits
- Absorbs specified axial, lateral and angular movement
- Reduces transmission of vibration and noise
- Offers compact face-to-face dimensions
- Available in different elastomers for water, weather, oil and chemical resistance
- Can be supplied with fixed or floating flanges, control units and other restraint hardware
- Suitable for standard, reducing, offset and project-specific configurations
Common Configurations
- Single-sphere and twin-sphere connectors
- Spool-type and wide-arch expansion joints
- Concentric and eccentric reducing joints
- Tied or restrained expansion joints
- Universal, hinged, gimbal and pressure-balanced arrangements for engineered systems
- Rectangular fan and duct connectors
- Full-face, raised-face or project-specific flange arrangements
General Elastomer Selection Guide

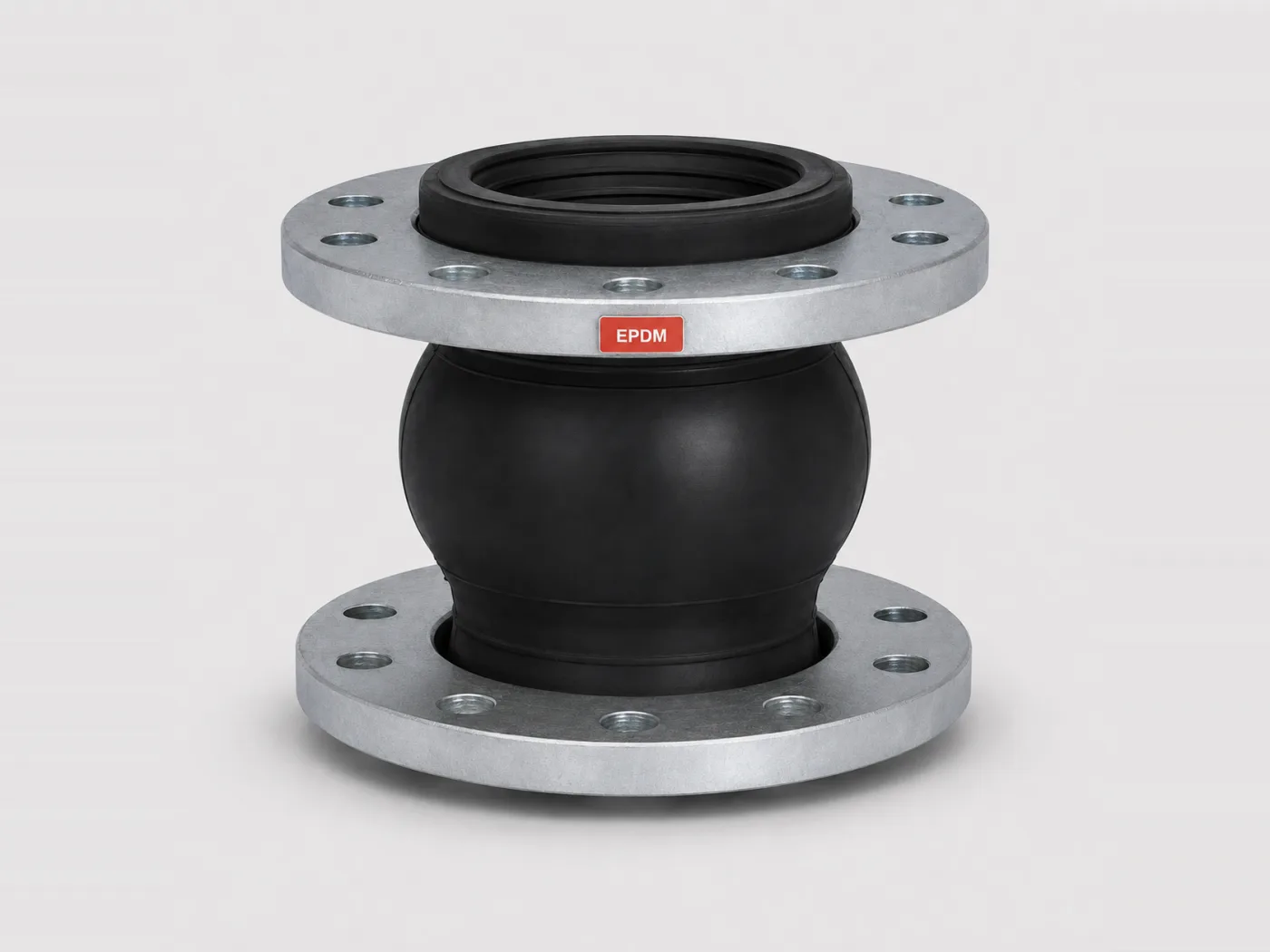

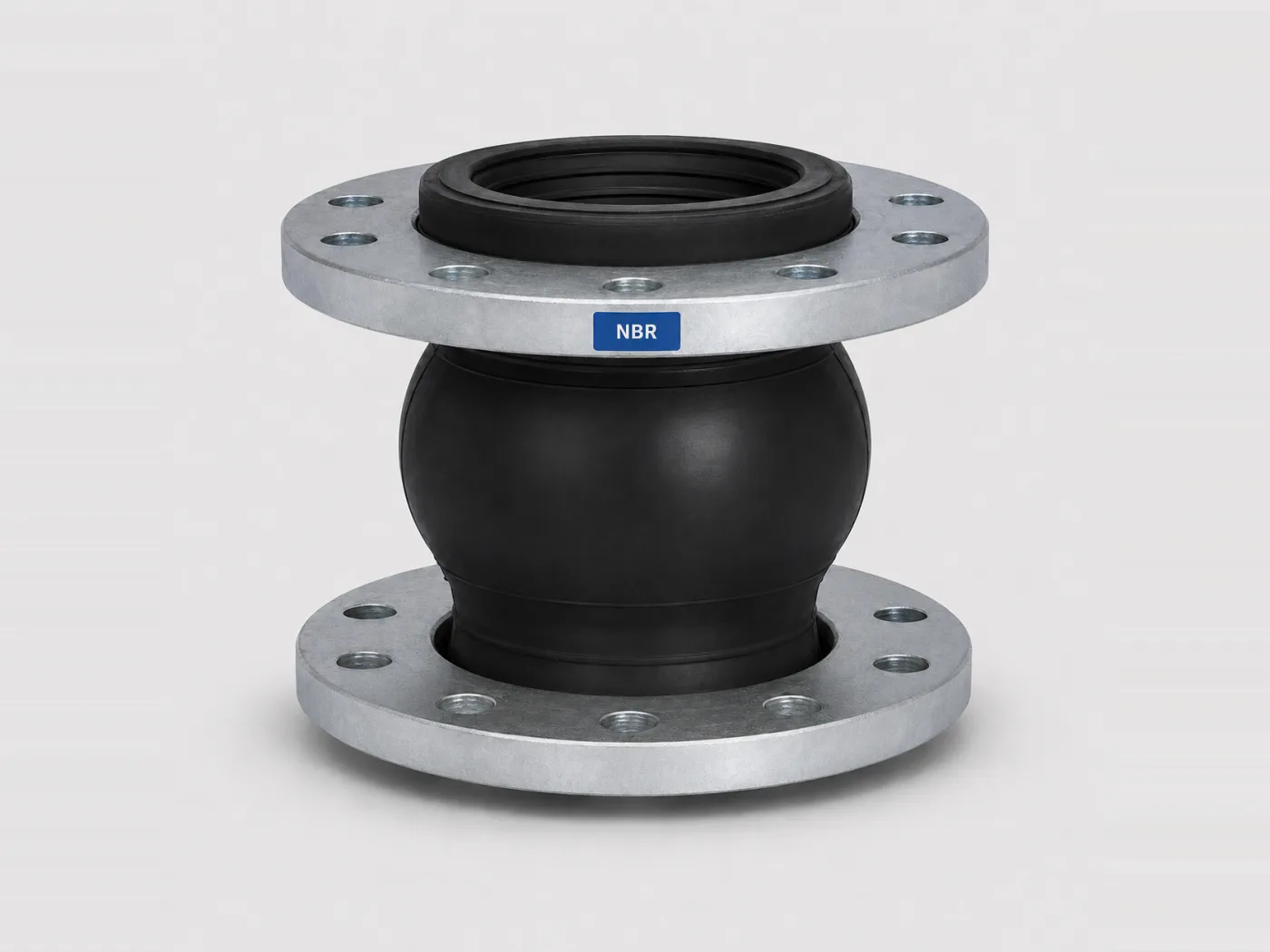

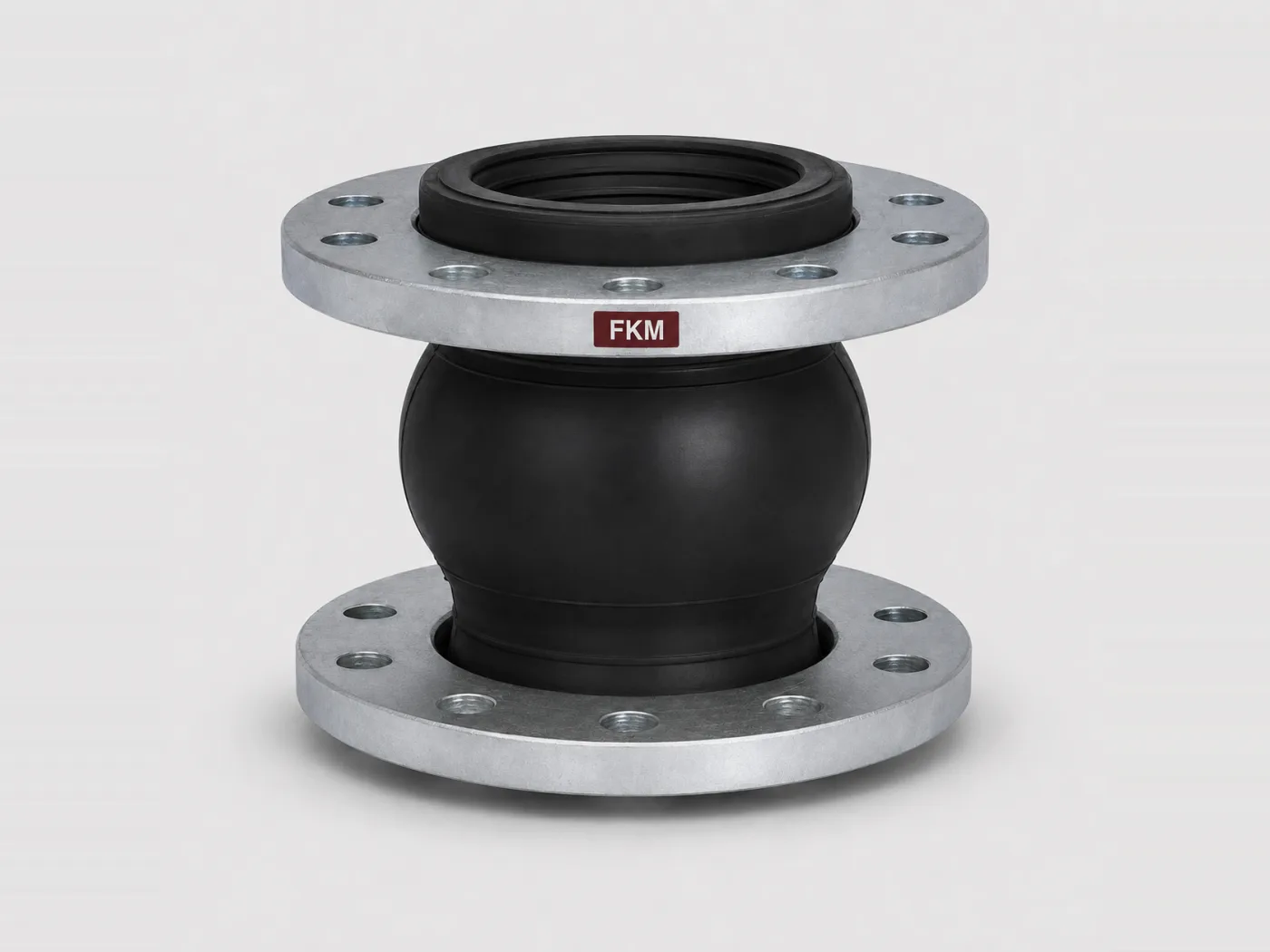

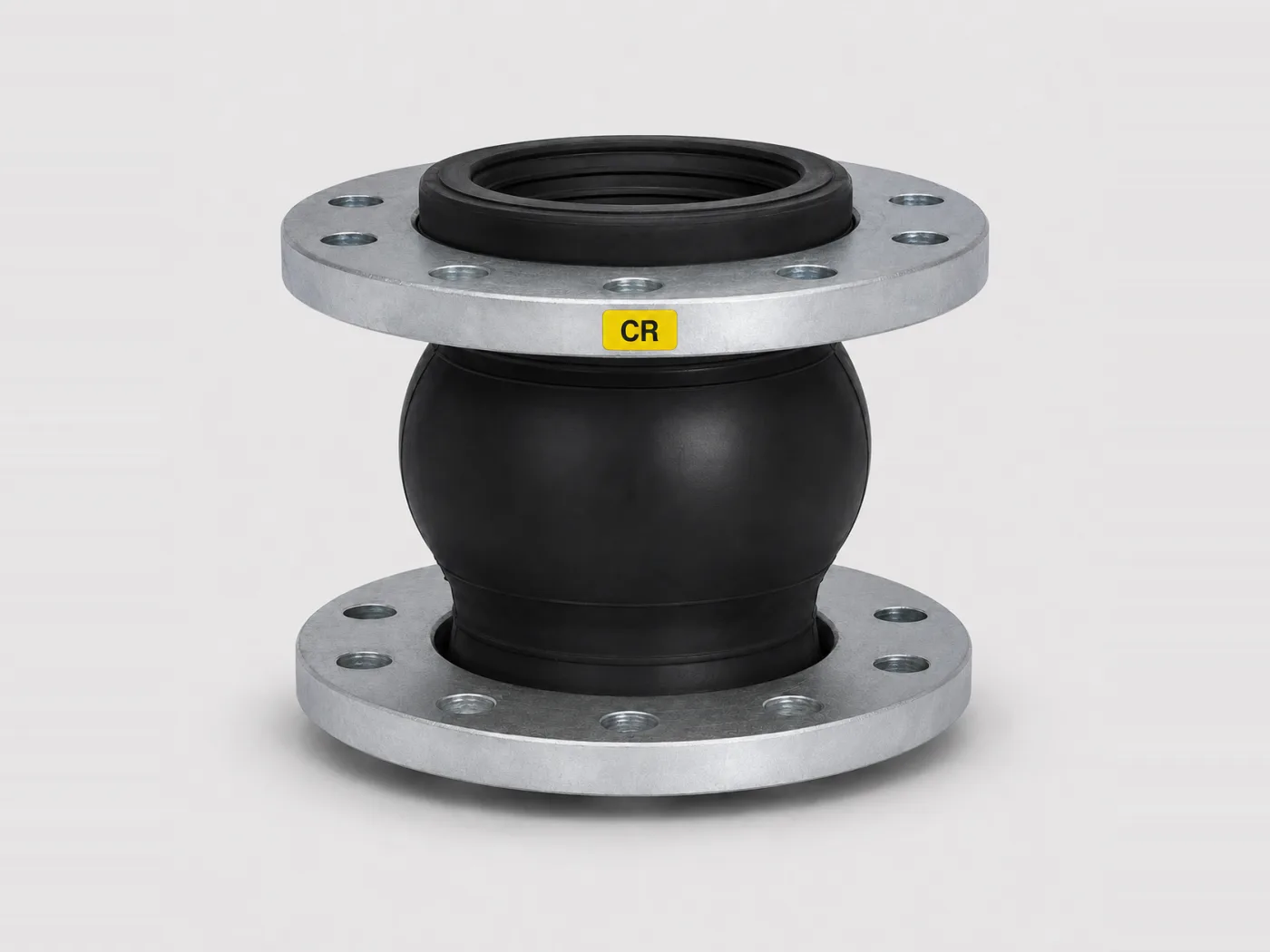

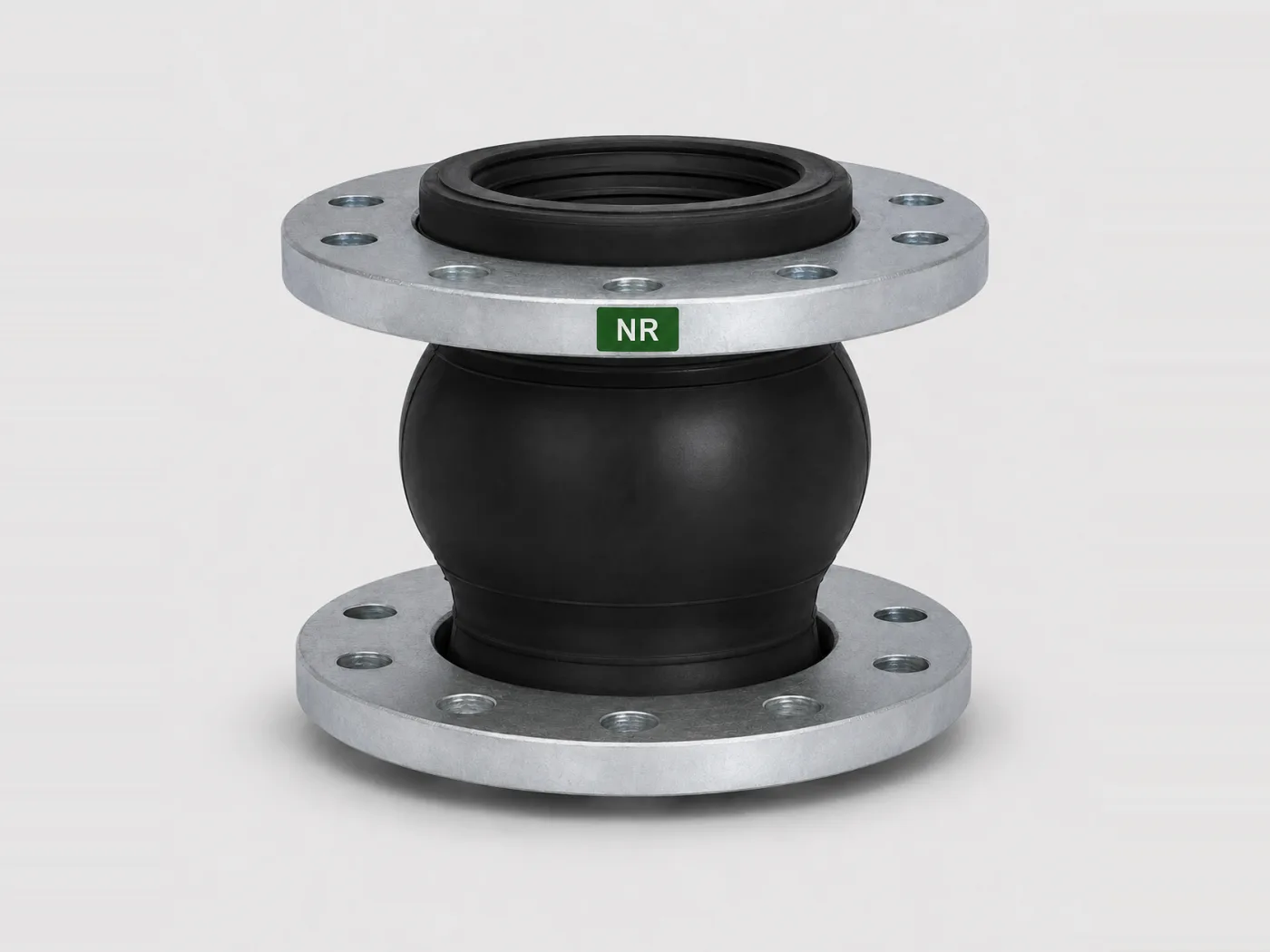

Chip colours match the physical tag colour on the supplied unit.
| Elastomer | Typical compatibility | Selection note |
|---|---|---|
| EPDM | Water, hot water, air, weathering and selected mild chemicals | Common for water, HVAC and outdoor service; generally unsuitable for petroleum oils. |
| NBR / Nitrile | Petroleum oils, fuel-related duties and oily compressed air | Good oil resistance; exact fuel chemistry and temperature must be checked. |
| CR / Neoprene | Water, seawater, weathering and moderate oil exposure | Balanced general-purpose resistance for many marine and utility applications. |
| Natural rubber | Water, slurry, abrasion and vibration duties | Good resilience and abrasion resistance; normally not selected for oil service. |
| FKM | Selected fuels, chemicals and elevated-temperature service | Used for demanding compatibility requirements; confirm exact chemistry and limits. |
Typical Applications
- Water and wastewater treatment
- HVAC, chilled-water and district-cooling systems
- Pump suction and discharge connections
- Marine cooling-water and utility systems
- Power and industrial utility services
- Selected chemical and process lines
[ Elastomers ]
EPDM
NBR / Nitrile
CR / Neoprene
Natural rubber
FKM
Compound, reinforcement, arch profile and pressure class are matched to the duty.
[ Start Here ]
Have a Drawing, Data Sheet or Existing Joint to Replace?
Send us the available technical information, photographs or existing dimensions. We will review the application and advise the next information required for a technical and commercial proposal.
Request a Rubber Expansion Joint Review
